Mechanical

Dual-arm render on test stand

6 DOF Arm + 1 DOF Gripper — Motor Selection​

For faster progress, we will be temporarily switching to attaching a gripper instead of the 15 DOF hands for the arm.

Rated TorquePeak Torque
Shoulder (1-2)AK10-9 V3.018Nm53Nm
Elbow (3-4-5)AK80-9 V3.09Nm22Nm
Wrist (6)GL40 II KV82.50.25Nm0.73Nm
Gripper (7)GL40 II KV82.50.25Nm0.73Nm

22 DOF Hand​

22 DOF hand (18 actuated), including 2 DOF for the wrist.

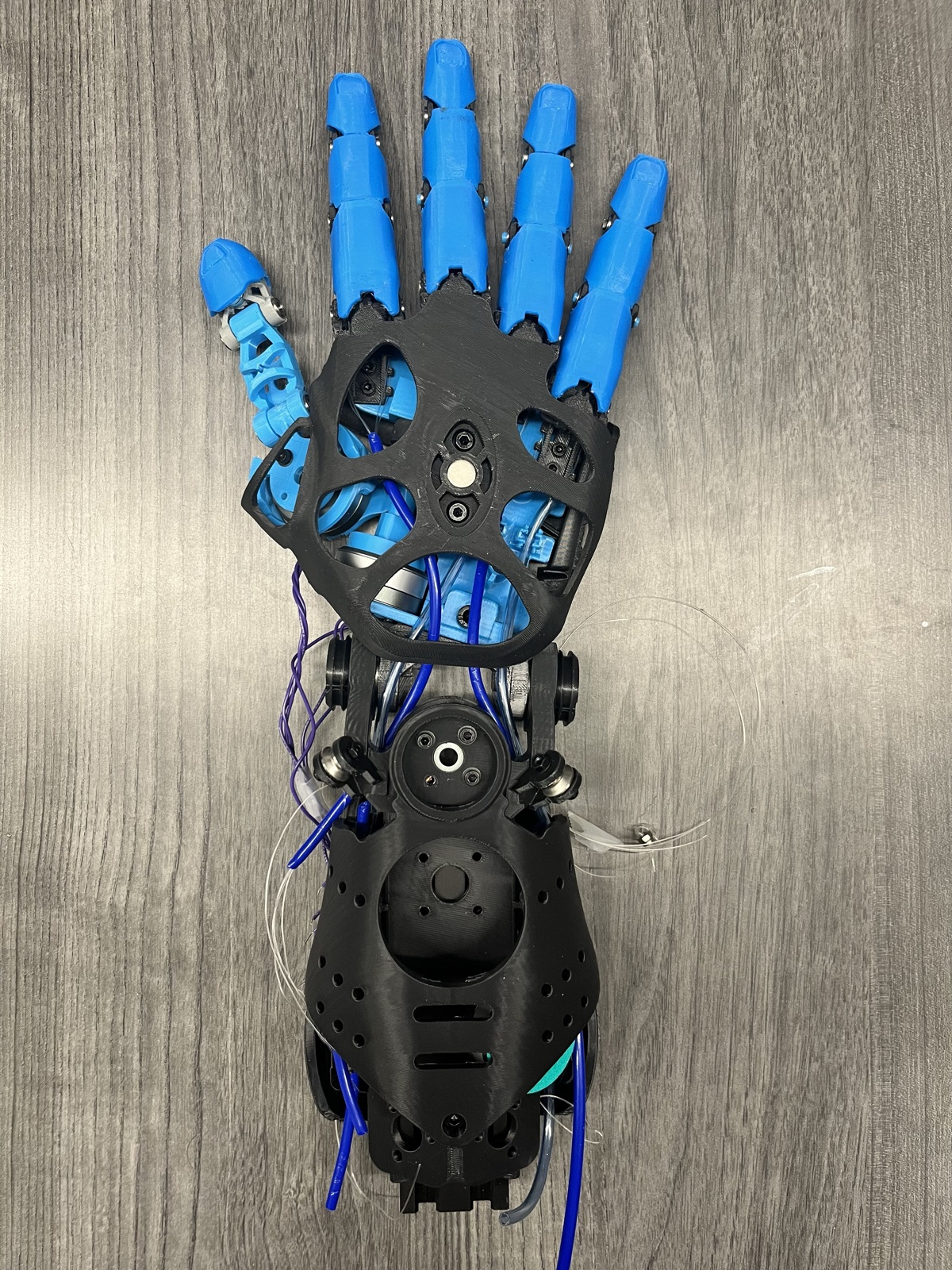

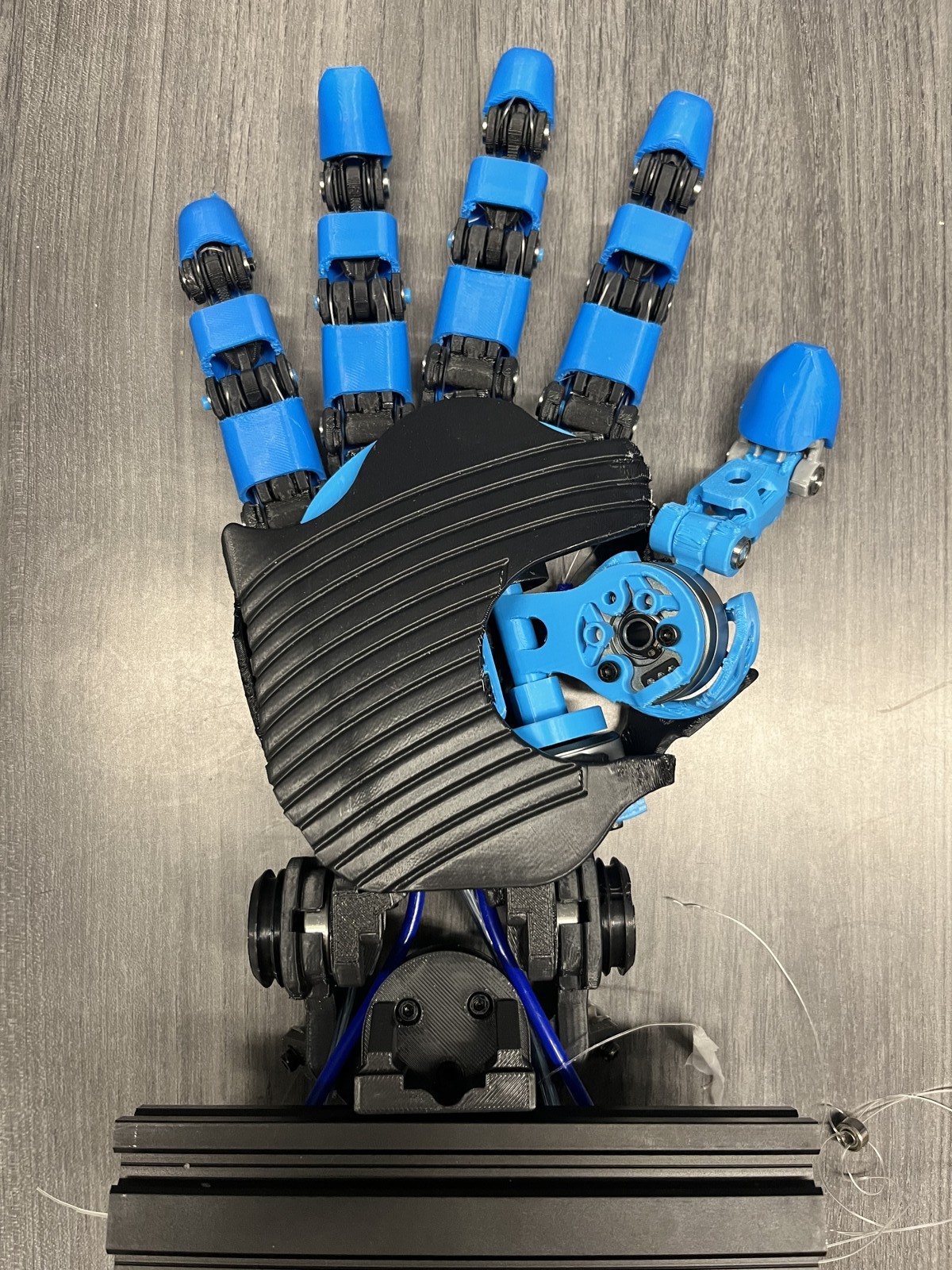

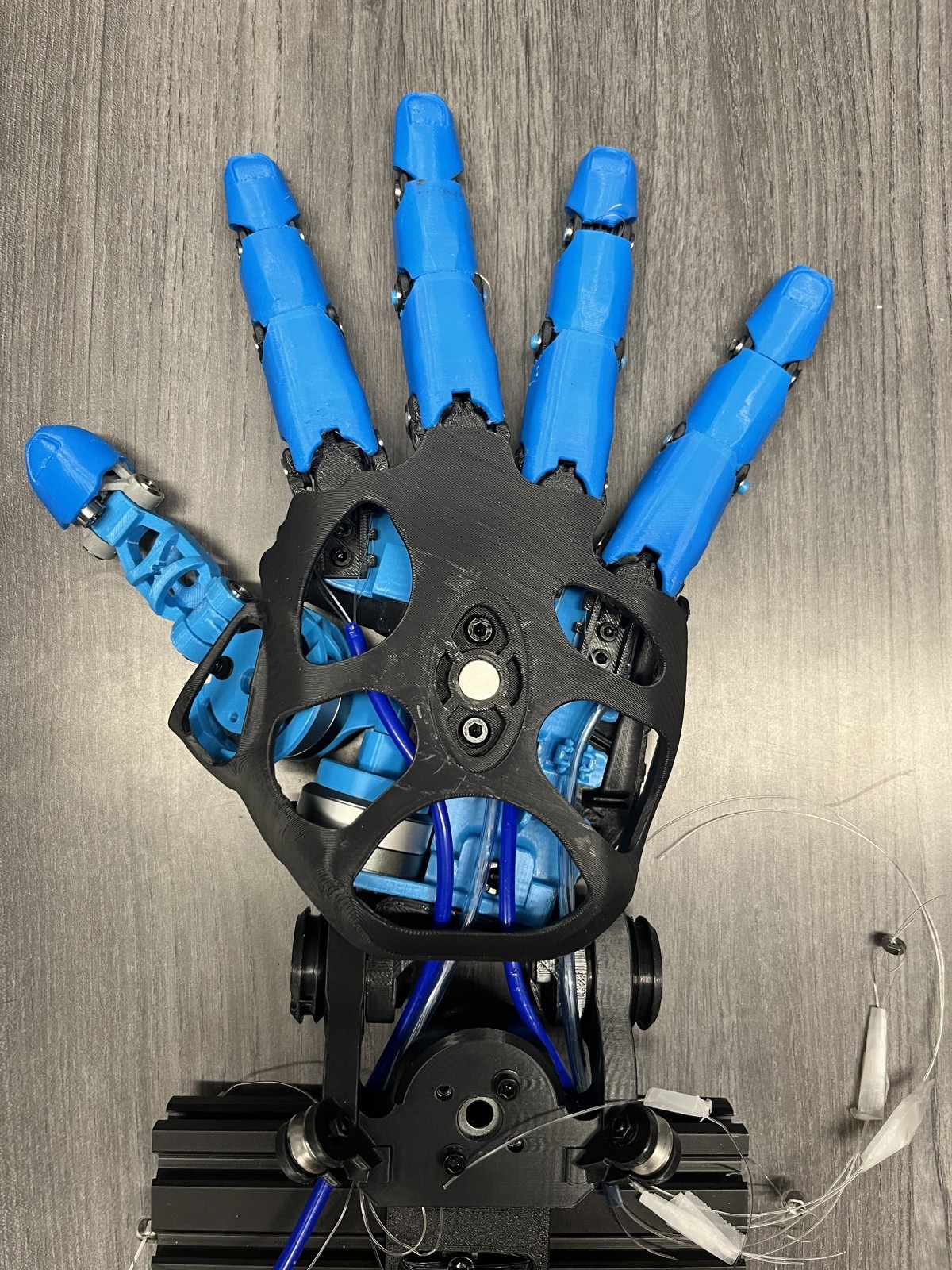

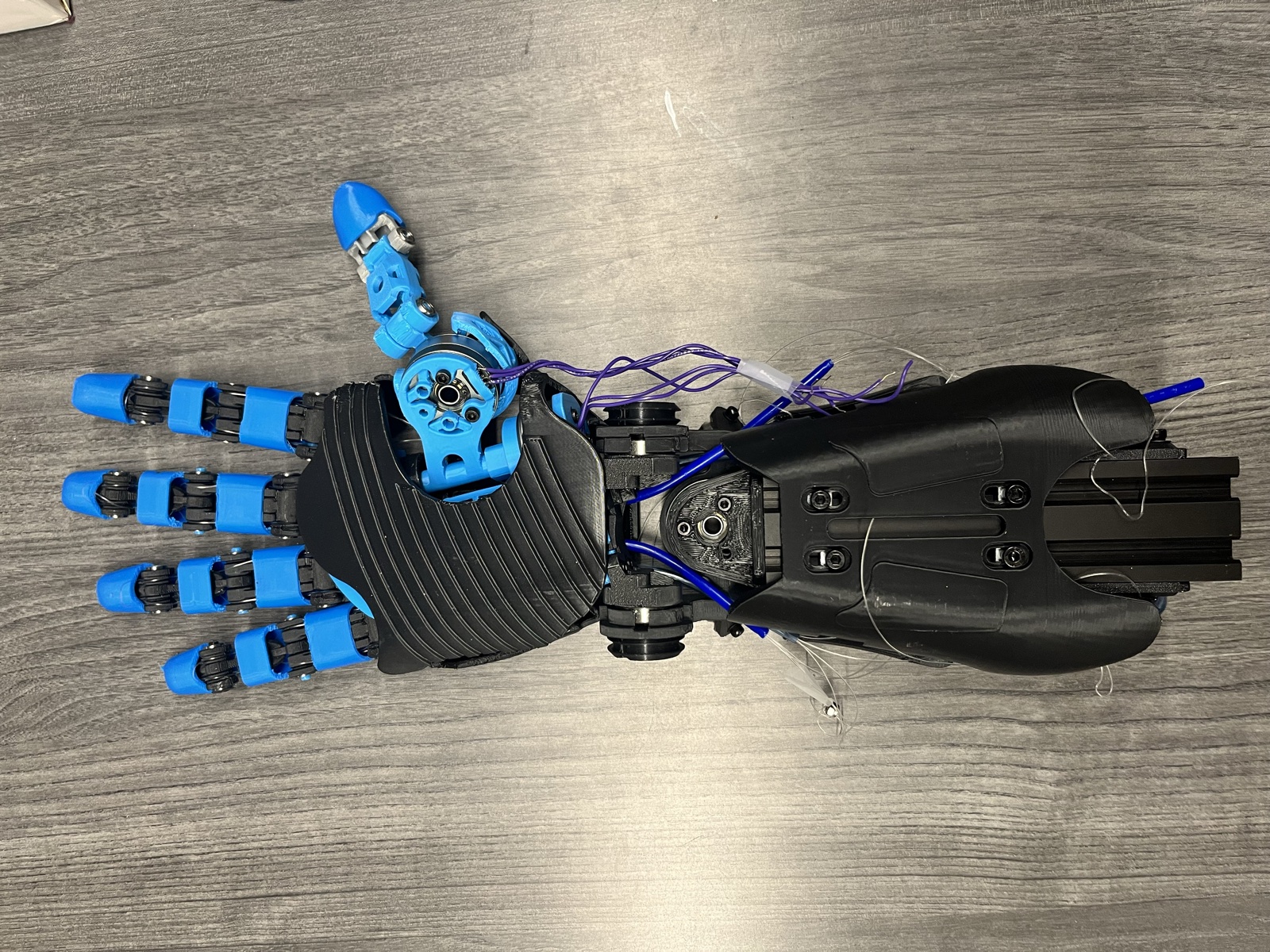

22 DOF hand, palm view 222 DOF hand, dorsal view 222 DOF hand, palm view22 DOF hand, dorsal view

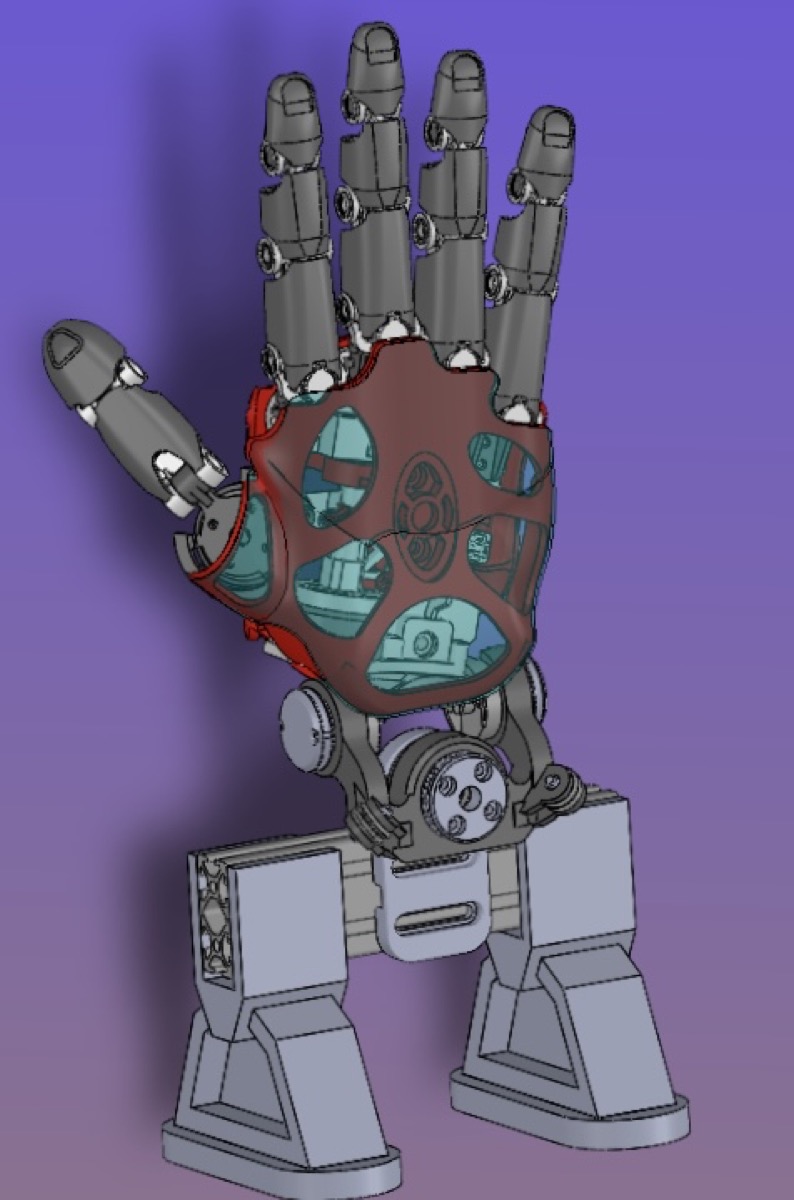

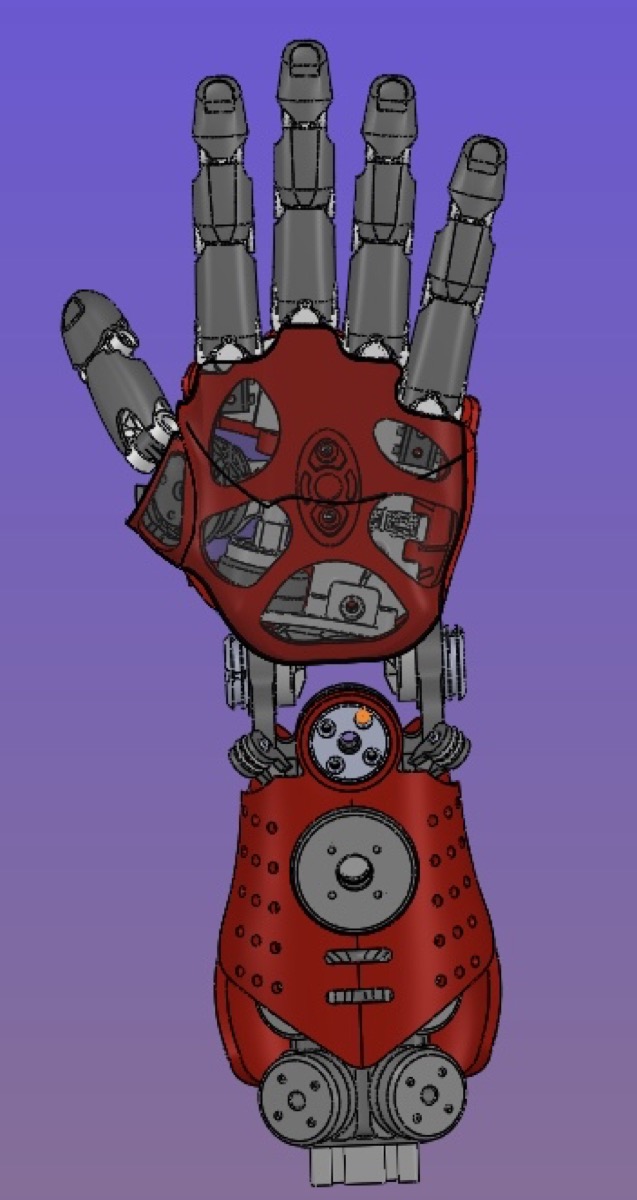

22 DOF hand render with forearm actuator stack22 DOF hand render, close-up of fingers and forearm actuators

Humanoid Leg​

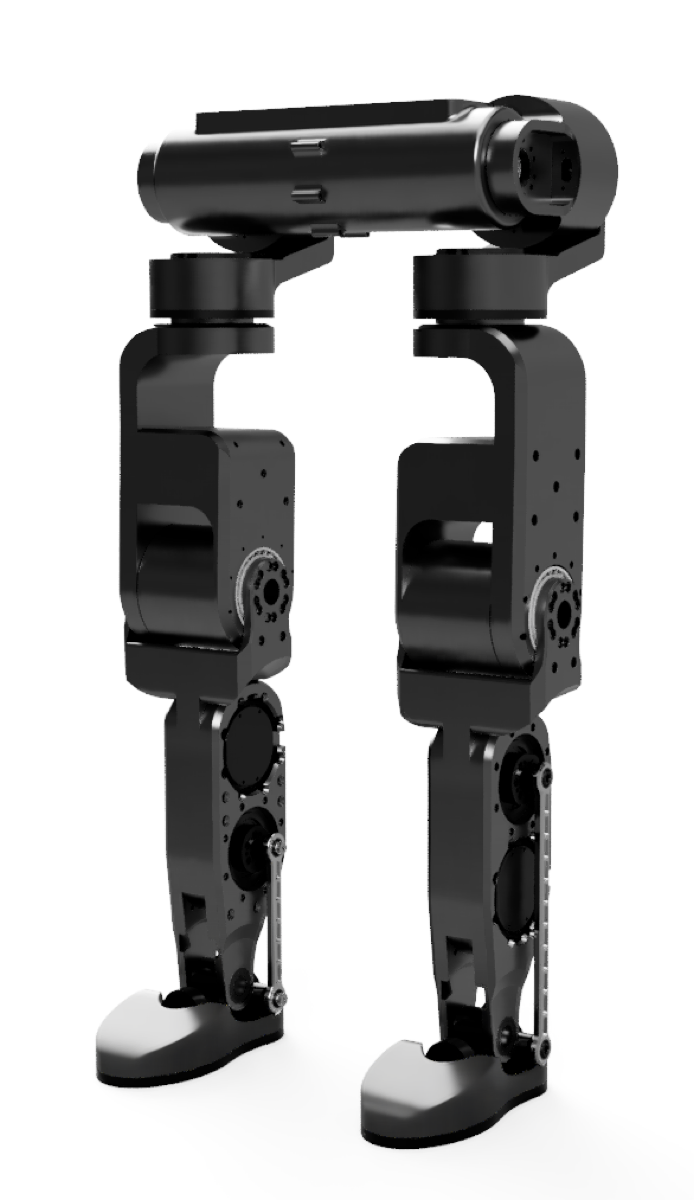

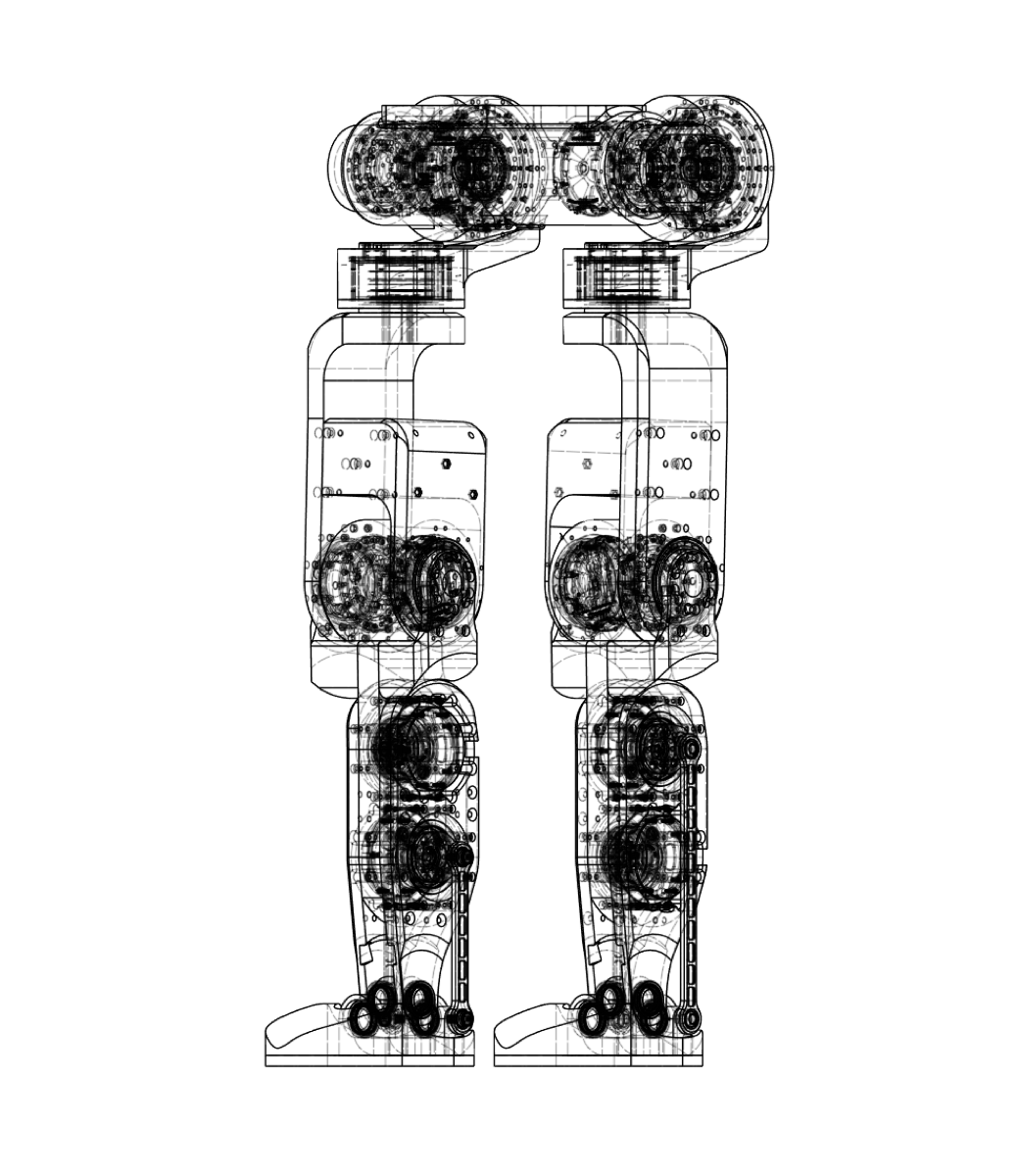

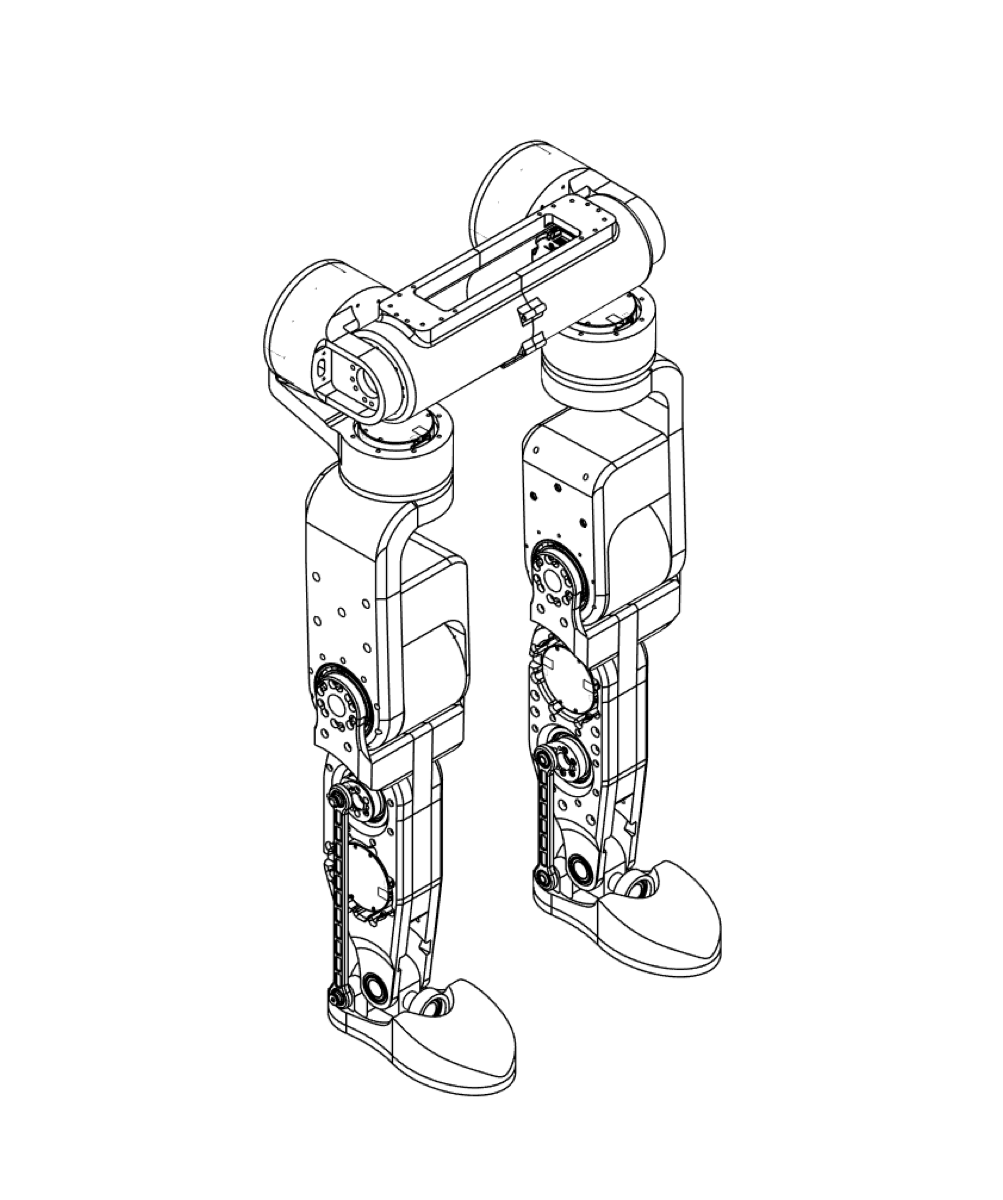

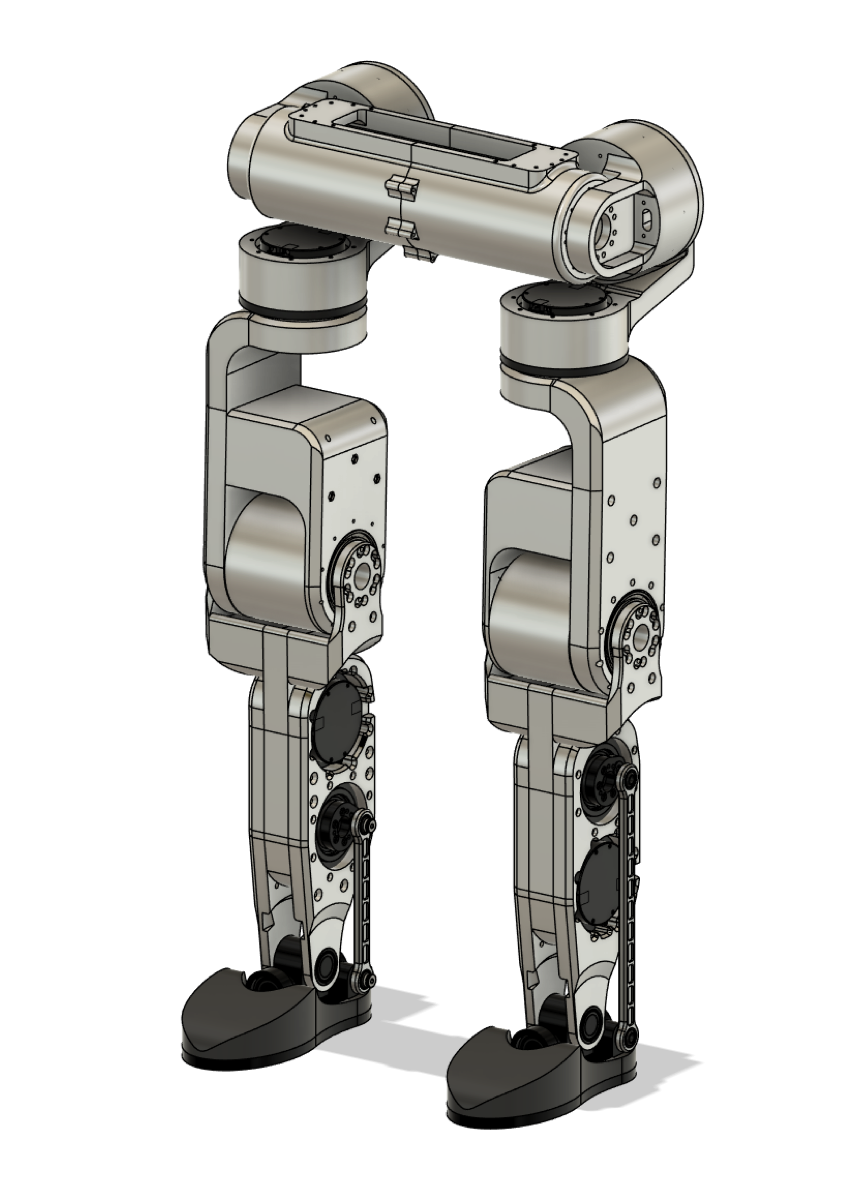

Humanoid leg render, light backgroundHumanoid leg render, dark backgroundAssembled humanoid leg prototypeAssembled humanoid leg prototype with soccer ball

6 DOF Per Leg — Motor Selection​

JointDOFMotorRange (deg)
HipPitch (Hip_F)AKH70-48−20 to +90
HipYaw (Hip_R)AK60-39 V3.0 KV80−30 to +90
HipRoll (Hip_A)AK80-64 KV80−10 to +60
KneePitchAKH70-48−65 to 0
AnklePitch (Ankle_P)AK60-39 V3.0 KV80−30 to +50
AnkleRoll (Ankle_R)AK60-39 V3.0 KV80−15 to +15

The ranges are the same on both legs. The whole robot: Whole-Body Humanoid.

Hip​

The hip design uses the F-A-R (Flexion-Abduction-Rotation) configuration for a compact and biomimetic joint arrangement. This configuration allows for efficient packaging of the actuators while maintaining the necessary degrees of freedom for humanoid locomotion.
